Control switch with 2×NO, 2×NC, 2×NO
SKU SAEB-237-013027013-99-02394
CHF 1'530.70
Price incl. VAT (8.1%) CHF 114.70
Label 1 (2x NO)
Enter your text
Label 2 (2X NC)
Enter your text
Label 3 (2x NO)
Enter your text
In stock
1

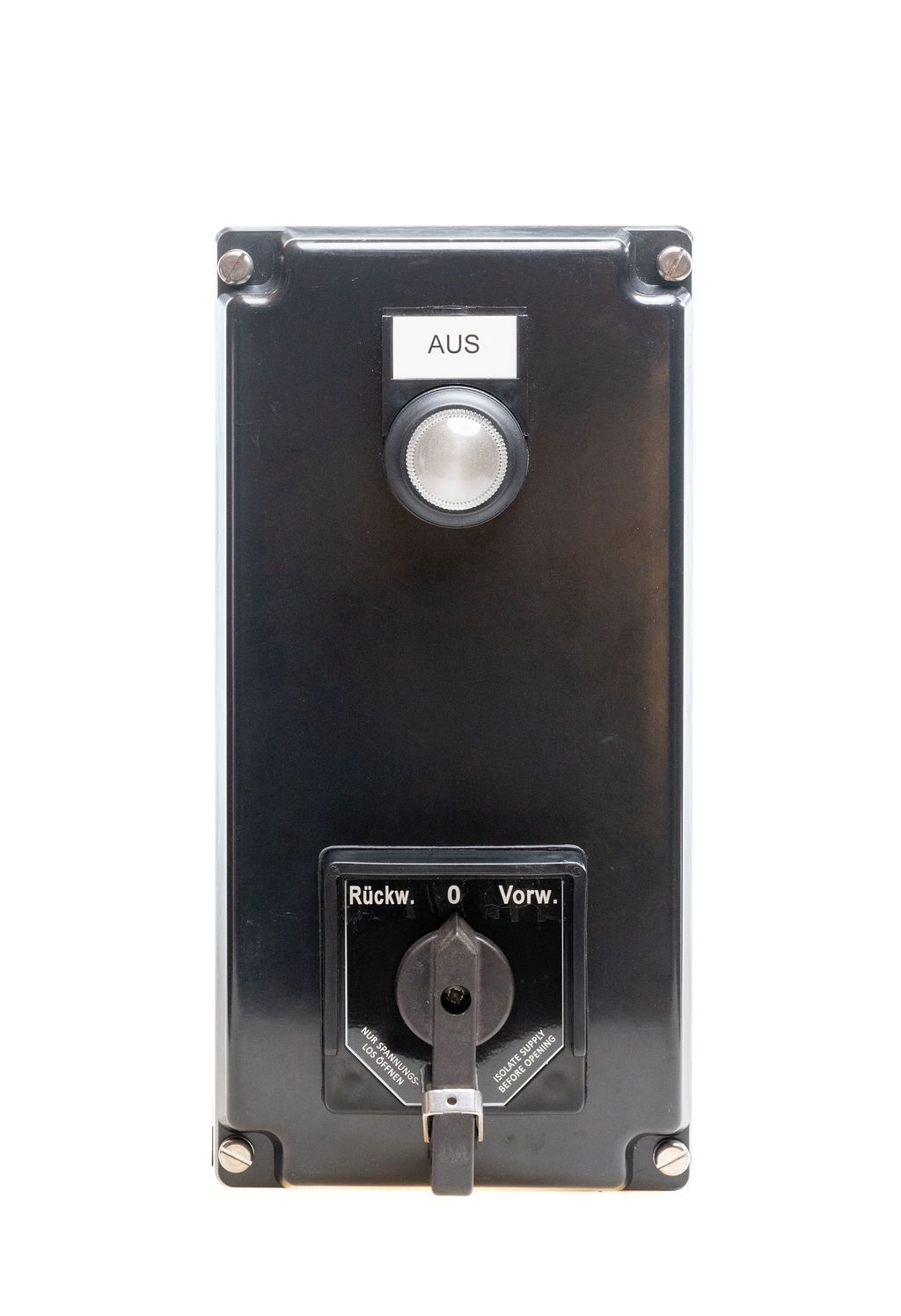

Control switch with 2×NO, 2×NC, 2×NO
Product Details
Indirect Ex-Control switch
BVS 21 ATEX E 069 X
IECEx BVS 18.0059X
Ex eb db IIC T6 Gb
Zone 1, Zone 2, Zone 21, Zone 22
Built-in components:
1× White signal lamp, 20–250 V AC/DC
1× Control switch "Manual – 0 – Auto",
detent–detent–detent, lockable in position 0
– in Manual: 2×NO
– in 0: 2×NC
– in Auto: 2×NO
--Label customizable--
1× Cable gland M25 for cable Ø 8.0–17.0 mm
*without internal wiring
Downloads:
