Control switch with 1×NO, 3×NC, 1×NO
SKU SAEB-237-013027013-99-02247
CHF 1'389.10
Price incl. VAT (8.1%) CHF 104.10
Label 1 (1x NO)
Enter your text
Label 2 (3X NC)
Enter your text
Label 3 (1x NO)
Enter your text
In stock
1

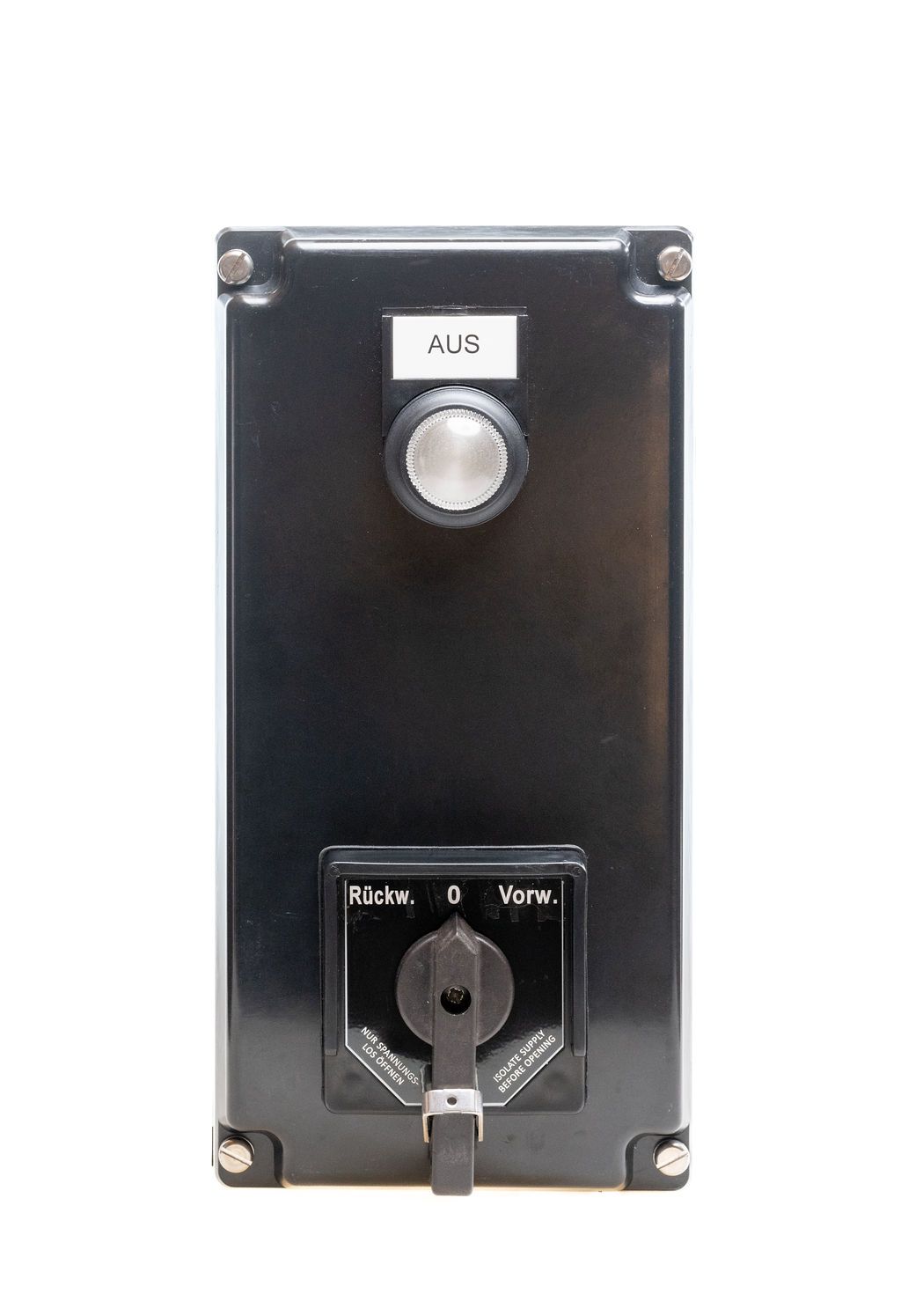

Control switch with 1×NO, 3×NC, 1×NO
Product Details

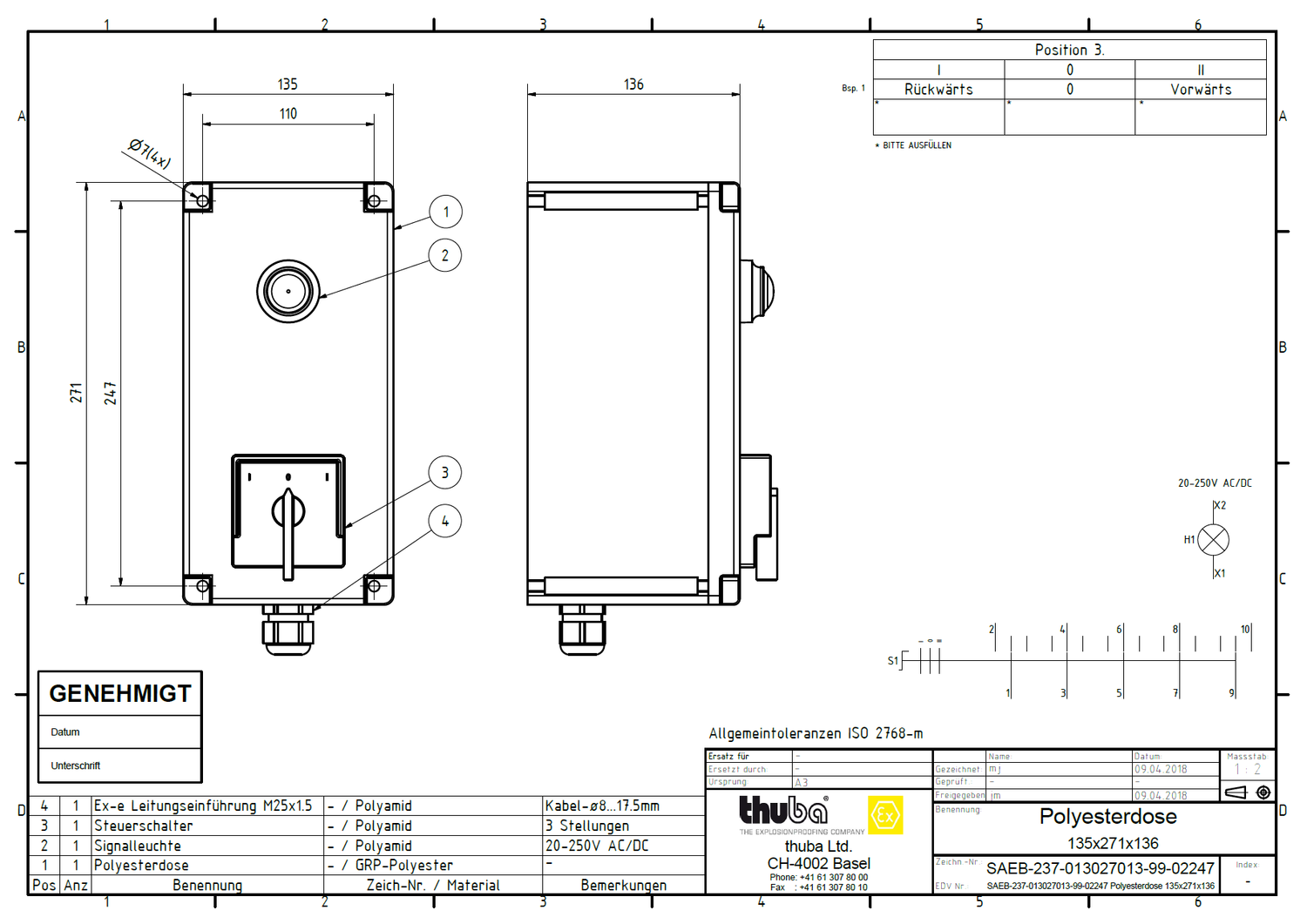

Indirect Ex-Control switch
BVS 21 ATEX E 069 X
IECEx BVS 18.0059X
Ex eb db IIC T6 Gb
Zone 1, Zone 2, Zone 21, Zone 22
Built-in components:
1x White signal lamp, 20–250 V AC/DC
1x Control switch "Manual – 0 – Auto"
detent–detent–detent, lockable in position 0
– in Manual: 1×NO
– in 0: 3×NC
– in Auto: 1×NO
--Label customizable--
1x Cable gland M25 for cable Ø 8.0–17.0 mm, bottom
*without internal wiring
Downloads:
